River Rotary Screening Bucket
The competitive advantages of excavator screening buckets are mainly reflected in three aspects: high efficiency, flexibility and environmental friendliness.
High efficiency
The screening efficiency can reach tens to hundreds of cubic meters per hour, far exceeding manual screening. Its internal comb-type screening mechanism design ensures stable operation even in dirty and impure material environments, and its processing capacity is significantly higher than that of traditional equipment.
Flexibility
It can be directly installed on excavators without additional infrastructure, quickly reaching narrow construction sites or remote areas, achieving on-site screening and significantly reducing transportation costs. The operation training is simple and compatible with various feeding methods (such as belts, funnels, etc.).
Environmental friendliness
Electric drive is adopted to reduce noise and exhaust emissions. The fine materials after screening can be directly used for backfilling or greening, reducing the negative impact of construction waste on the environment.
In addition, the screening hopper has a simple structure and low maintenance cost, and can be used for multiple purposes with one machine (such as river sand screening, construction waste classification, etc.), further lowering the threshold for use.
|
Model |
HX03 |
HX06 |
HX10 |
HX20 |
HX30 |
HX35 |
|
Suitable excavators/ton |
≥3<6 |
≥6<9 |
≥9<20 |
≥20<30 |
≥30<35 |
≥35 |
|

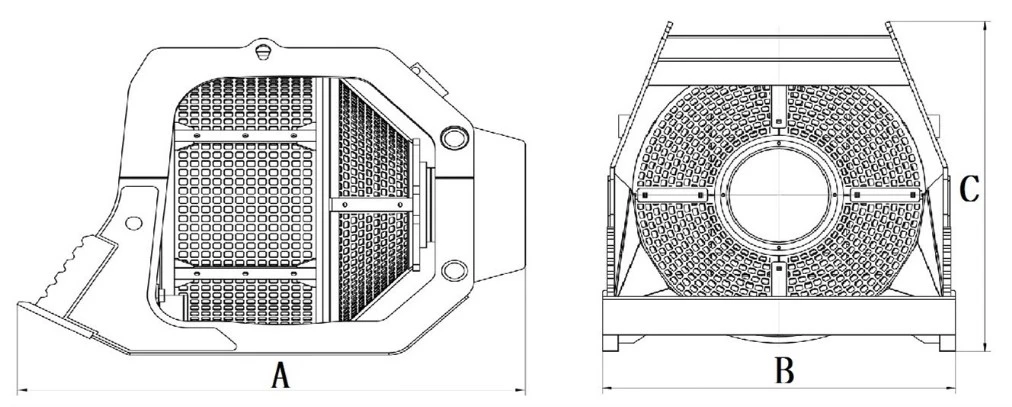

Size(AXBXC) |
930*690*679 |
1127*880*853 |
1575*1200*1200 |
1940*1400*1415 |
2295*1870*1875 |
2930*2320*2380 |
|
Weight/kg |
230 |
340 |
830 |
1270 |
2250 |
3945 |
|
Mesh Diameter x Depth |
610*450 |
770*570 |
1000*780 |
1140*1015 |
1540*1180 |
1940*1590 |
|
Speed R/M |
0-35 |
0-35 |
0-35 |
0-35 |
0-35 |
0-35 |
|
Capacity m³ |
0.13 |
0.26 |
0.62 |
1.2 |
1.6 |
4.7 |
|
Max Flow L |
40 |
40 |
65 |
65 |
65 |
160 |
|
Max Pressure Mpa |
30 |
30 |
30 |
30 |
30 |
30 |
